CEP-3
Water-proof Cap

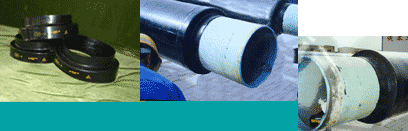

CEP-3 Water-proof Cap are
sued to protect the insulating foam between the pipe
and the outer jacket in insulated pipe sections.
Water-proof Cap should be sued on both pipe ends.
1.CEP-3 Water-proof Cap
Specification
No. |
Type & Specification |
Pipe Diameter (mm) / Thickness of Insulated
Jacket (mm) |
1 |
CEP-3 60d |
60/d |
2 |
CEP-3 89d |
89/d |
3 |
CEP-3 114d |
114/d |
4 |
CEP-3 159d |
159/d |
5 |
CEP-3 219d |
219/d |
6 |
CEP-3 273d |
273/d |
7 |
CEP-3 325d |
325/d |
Notes:
1). The d is thickness of
insulated jacket, it is
specified by the customer's order. Normal size
is 30-45mm.
2). Besides the above
specification, specific requirement of customers can
conformed.
2.
Outer(Inner) Heat Shrinkable Sleeve (Tape) of
insulated Jacket
CEP-1 Heat Shrinkable Sleeve&CEP-4 Heat Shrinkable
Tape for Insulated Jacket
Product Name |
Pipe diameter (mm) |
Specification |
Outer Sleeve(Tape) |
Inner Tape |
Heat Shrinkable Sleeve (Tape) |
60 |
CEP-1(4) ф60×300 |
CEP-4 ф(60+2d)×500 |
Heat Shrinkable Sleeve (Tape) |
89 |
CEP-1(4) ф89×300 |
CEP-4 ф(89+2d)×500 |
Heat Shrinkable Sleeve (Tape) |
114 |
CEP-1(4) ф114×300 |
CEP-4 ф(114+2d)×500 |
Heat Shrinkable Sleeve (Tape) |
159 |
CEP-1(4) ф159×300 |
CEP-4 ф(159+2d)×500 |
Heat Shrinkable Sleeve (Tape) |
219 |
CEP-1(4) ф219×300 |
CEP-4 ф(219+2d)×500 |
Heat Shrinkable Sleeve (Tape) |
273 |
CEP-1(4) ф273×300 |
CEP-4 ф(273+2d)×500 |
Heat Shrinkable Sleeve (Tape) |
325 |
CEP-1(4) ф325×300 |
CEP-4 ф(325+2d)×500 |
Notes:
1).The d is thickness of
insulated jacket, it is
specified by the customer's order.
Normal size is 30-45mm.
2).The length of outer
(inner) Heat Shrinkable Sleeve/Tape is decided by the
end length of bare metal part
of jacket pipe. The
above data is normal size.
3).Besides the above
specification, specific requirement can be conformed.
|
